GFX

Description

GFX interface providing generic graphics primitives and utilities [v25.12.0].

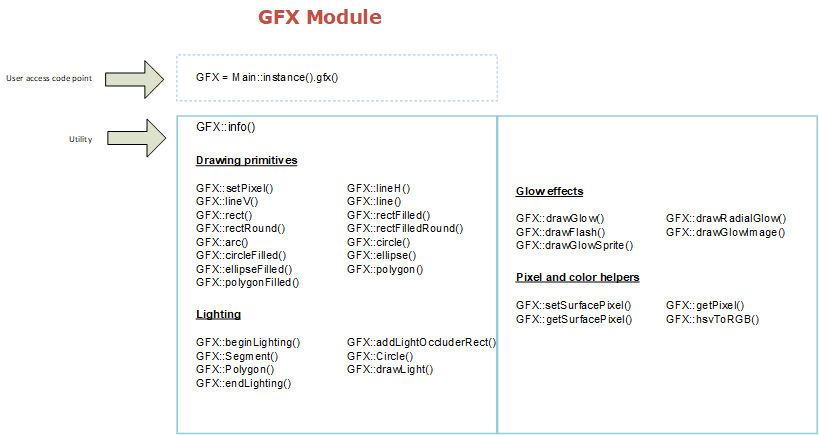

Overview

The GFX interface provides a collection of generic graphics methods for drawing primitives and performing color conversions. Drawing methods are optimized for real-time effects when rendering to screens, though rendering to images has different performance characteristics.

Key features

• Pixel operations: Direct pixel access on images and screens
• Line primitives: Horizontal, vertical and arbitrary line drawing
• Shape primitives: Rectangles, round rectangles, circles, ellipses and polygons
• Fill modes: Outlined and filled variants for all shapes
• Color conversion: Multiple color space transformations

Pixel operations

Get pixel	Read individual pixel color from an image or screen
Set pixel	Write individual pixel color to an image or screen

Drawing primitives

Lines	Horizontal line, vertical line and arbitrary line
Rectangle	Outlined and filled rectangle
Round rectangle	Outlined and filled rectangle with rounded corners
Circle	Outlined and filled circle
Ellipse	Outlined and filled ellipse
Polygon	Outlined and filled polygon with arbitrary vertices

Color conversions

RGB ↔ HSV	Red-Green-Blue to Hue-Saturation-Value
RGB ↔ YUV	Red-Green-Blue to Luminance-Chrominance
RGB ↔ CMYK	Red-Green-Blue to Cyan-Magenta-Yellow-Key
RGB ↔ YCC	Red-Green-Blue to Luminance-Chroma

Performance considerations

Screen target	Fast enough for real-time effects
Image target	Slower performance; not intended for real-time effects. Occasional use is acceptable, but heavy usage will impact performance

Best practices

• Prefer rendering to screens over images for real-time drawing effects
• Use horizontal and vertical line methods when applicable, they are faster than arbitrary lines
• Use filled primitives sparingly on images as they are more expensive than outlined versions
• Leverage color conversions for dynamic color manipulation effects (e.g., HSV for hue shifting)
• Pre-render complex shapes to images during loading rather than drawing them every frame
• Access the interface exclusively through Main::IGFX()

Note

The GFX interface is a singleton, automatically created once Main is instantiated. You can get a reference to this interface using Main::IGFX() method.
The GFX interface is automatically released when Main::Terminate() is called. At this time, any resource still loaded will be released, avoiding resource leaks.

Classes
class	CRM64Pro::GFX
	GFX class. More...

Functions
Sint32	CRM64Pro::GFX::info (Sint32 iMode=0)
	Request GFX Interface information.
Sint32	CRM64Pro::GFX::setSurfacePixel (float fX, float fY, Uint32 iColor, SDL_Surface *pSurf)
	Draw a pixel in a surface.
Uint32	CRM64Pro::GFX::getSurfacePixel (float fX, float fY, SDL_Surface *pSurf)
	Get a pixel color from a surface.
Sint32	CRM64Pro::GFX::setPixel (float fX, float fY, Uint32 iColor, Sint32 idRes=0)
	Draw a pixel.
Sint32	CRM64Pro::GFX::setPixel (float fX, float fY, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw a pixel.
Uint32	CRM64Pro::GFX::getPixel (float fX, float fY, Sint32 idRes=0)
	Get a pixel color.
Sint32	CRM64Pro::GFX::lineH (float fX1, float fX2, float fY, Uint32 iColor, Sint32 idRes=0)
	Draw a horizontal line.
Sint32	CRM64Pro::GFX::lineH (float fX1, float fX2, float fY, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw a horizontal line.
Sint32	CRM64Pro::GFX::lineV (float fX, float fY1, float fY2, Uint32 iColor, Sint32 idRes=0)
	Draw a vertical line.
Sint32	CRM64Pro::GFX::lineV (float fX, float fY1, float fY2, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw a vertical line.
Sint32	CRM64Pro::GFX::line (float fX1, float fY1, float fX2, float fY2, Uint32 iColor, Sint32 idRes=0)
	Draw a line.
Sint32	CRM64Pro::GFX::line (float fX1, float fY1, float fX2, float fY2, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw a line.
Sint32	CRM64Pro::GFX::rect (float fX1, float fY1, float fX2, float fY2, Uint32 iColor, Sint32 idRes=0)
	Draw an outlined rectangle.
Sint32	CRM64Pro::GFX::rect (float fX1, float fY1, float fX2, float fY2, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw an outlined rectangle.
Sint32	CRM64Pro::GFX::rectFilled (float fX1, float fY1, float fX2, float fY2, Uint32 iColor, Sint32 idRes=0)
	Draw a filled rectangle.
Sint32	CRM64Pro::GFX::rectFilled (float fX1, float fY1, float fX2, float fY2, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw a filled rectangle.
Sint32	CRM64Pro::GFX::rectRound (float fX1, float fY1, float fX2, float fY2, float fRad, Uint32 iColor, Sint32 idRes=0)
	Draw a round outlined rectangle.
Sint32	CRM64Pro::GFX::rectRound (float fX1, float fY1, float fX2, float fY2, float fRad, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw a round outlined rectangle.
Sint32	CRM64Pro::GFX::rectFilledRound (float fX1, float fY1, float fX2, float fY2, float fRad, Uint32 iColor, Sint32 idRes=0)
	Draw a round filled rectangle.
Sint32	CRM64Pro::GFX::rectFilledRound (float fX1, float fY1, float fX2, float fY2, float fRad, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw a round filled rectangle.
Sint32	CRM64Pro::GFX::arc (float fX, float fY, float fRad, float fStart, float fEnd, Uint32 iColor, Sint32 idRes=0)
	Draw an arc.
Sint32	CRM64Pro::GFX::arc (float fX, float fY, float fRad, float fStart, float fEnd, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw an arc.
Sint32	CRM64Pro::GFX::circle (float fX, float fY, float fRad, Uint32 iColor, Sint32 idRes=0)
	Draw an outlined circle.
Sint32	CRM64Pro::GFX::circle (float fX, float fY, float fRad, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw an outlined circle.
Sint32	CRM64Pro::GFX::circleFilled (float fX, float fY, float fRad, Uint32 iColor, Sint32 idRes=0)
	Draw a filled circle.
Sint32	CRM64Pro::GFX::circleFilled (float fX, float fY, float fRad, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw a filled circle.
Sint32	CRM64Pro::GFX::ellipse (float fX, float fY, float fRadX, float fRadY, Uint32 iColor, Sint32 idRes=0)
	Draw an outlined ellipse.
Sint32	CRM64Pro::GFX::ellipse (float fX, float fY, float fRadX, float fRadY, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw an outlined ellipse.
Sint32	CRM64Pro::GFX::ellipseFilled (float fX, float fY, float fRadX, float fRadY, Uint32 iColor, Sint32 idRes=0)
	Draw a filled ellipse.
Sint32	CRM64Pro::GFX::ellipseFilled (float fX, float fY, float fRadX, float fRadY, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw a filled ellipse.
Sint32	CRM64Pro::GFX::polygon (float *fVX, float *fVY, Sint32 iNV, Uint32 iColor, Sint32 idRes=0)
	Draw an outlined polygon.
Sint32	CRM64Pro::GFX::polygon (float *fVX, float *fVY, Sint32 iNV, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw an outlined polygon.
Sint32	CRM64Pro::GFX::polygonFilled (float *fVX, float *fVY, Sint32 iNV, Uint32 iColor, Sint32 idRes=0)
	Draw a filled polygon.
Sint32	CRM64Pro::GFX::polygonFilled (float *fVX, float *fVY, Sint32 iNV, Uint8 iR, Uint8 iG, Uint8 iB, Uint8 iA, Sint32 idRes=0)
	Draw a filled polygon.
Sint32	CRM64Pro::GFX::RGBtoHSV (Uint8 iR, Uint8 iG, Uint8 iB, float *fH, float *fS, float *fV)
	Color conversion from RGB to HSV.
Sint32	CRM64Pro::GFX::HSVtoRGB (float fH, float fS, float fV, Uint8 *iR, Uint8 *iG, Uint8 *iB)
	Color conversion from HSV to RGB.
Sint32	CRM64Pro::GFX::RGBtoYUV (Uint8 iR, Uint8 iG, Uint8 iB, Uint8 *iY, Uint8 *iU, Uint8 *iV)
	Color conversion from RGB to YUV.
Sint32	CRM64Pro::GFX::YUVtoRGB (Uint8 iY, Uint8 iU, Uint8 iV, Uint8 *iR, Uint8 *iG, Uint8 *iB)
	Color conversion from YUV to RGB.
Sint32	CRM64Pro::GFX::RGBtoCMYK (Uint8 iR, Uint8 iG, Uint8 iB, Uint8 *iC, Uint8 *iM, Uint8 *iY, Uint8 *iK)
	Color conversion from RGB to CMYK.
Sint32	CRM64Pro::GFX::CMYKtoRGB (Uint8 iC, Uint8 iM, Uint8 iY, Uint8 iK, Uint8 *iR, Uint8 *iG, Uint8 *iB)
	Color conversion from CMYK to RGB.
Sint32	CRM64Pro::GFX::RGBtoYCC (Uint8 iR, Uint8 iG, Uint8 iB, Uint8 *iY, Uint8 *Cb, Uint8 *Cr)
	Color conversion from RGB to YCC.
Sint32	CRM64Pro::GFX::YCCtoRGB (Uint8 iY, Uint8 Cb, Uint8 Cr, Uint8 *iR, Uint8 *iG, Uint8 *iB)
	Color conversion from YCC to RGB.

Function Documentation

info()

Sint32 CRM64Pro::GFX::info

(

Sint32

iMode = 0

)

Request GFX Interface information.

Writes information to the default log.

Parameters

iMode

unused for the time being.

Returns

0 on success, or a negative error code on failure.

setSurfacePixel()

Sint32 CRM64Pro::GFX::setSurfacePixel	(	float	fX,
		float	fY,
		Uint32	iColor,
		SDL_Surface *	pSurf )

Draw a pixel in a surface.

Parameters

fX	X (horizontal) coordinate of the pixel.
fY	Y (vertical) coordinate of the pixel.
iColor	The color value of the pixel to draw (0xAARRGGBB).
pSurf	SDL_Surface pointer.

Returns

0 on success, or a negative error code on failure.

Note

For getting maximum performance, there is not any error checking.

getSurfacePixel()

Uint32 CRM64Pro::GFX::getSurfacePixel	(	float	fX,
		float	fY,
		SDL_Surface *	pSurf )

Get a pixel color from a surface.

Parameters

fX	X (horizontal) coordinate of the pixel.
fY	Y (vertical) coordinate of the pixel.
pSurf	SDL_Surface pointer.

Returns

a 32bits unsigned integer with the value of the pixel value in the surface format.

Note

For getting maximum performance, there is not any error checking.

setPixel() [1/2]

Sint32 CRM64Pro::GFX::setPixel	(	float	fX,
		float	fY,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw a pixel.

Parameters

fX	X (horizontal) coordinate of the pixel.
fY	Y (vertical) coordinate of the pixel.
iColor	The color value of the pixel to draw (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

setPixel() [2/2]

Sint32 CRM64Pro::GFX::setPixel	(	float	fX,
		float	fY,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw a pixel.

Parameters

fX	X (horizontal) coordinate of the pixel.
fY	Y (vertical) coordinate of the pixel.
iR	The red color value of the pixel to draw.
iG	The green color value of the pixel to draw.
iB	The blue color value of the pixel to draw.
iA	The alpha value of the pixel to draw.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

getPixel()

Uint32 CRM64Pro::GFX::getPixel	(	float	fX,
		float	fY,
		Sint32	idRes = 0 )

Get a pixel color.

Parameters

fX	X (horizontal) coordinate of the pixel.
fY	Y (vertical) coordinate of the pixel.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

a 32bits unsigned integer with the RGBA value of the pixel value.

Note

This method is a bit slow when accessing to an image handle or VERY slow when doing it on a screen.

lineH() [1/2]

Sint32 CRM64Pro::GFX::lineH	(	float	fX1,
		float	fX2,
		float	fY,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw a horizontal line.

Parameters

fX1	X coordinate of the first point of the line.
fX2	X coordinate of the second point of the line.
fY	Y coordinate of the points of the line.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

lineH() [2/2]

Sint32 CRM64Pro::GFX::lineH	(	float	fX1,
		float	fX2,
		float	fY,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw a horizontal line.

Parameters

fX1	X coordinate of the first point of the line.
fX2	X coordinate of the second point of the line.
fY	Y coordinate of the points of the line.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

lineV() [1/2]

Sint32 CRM64Pro::GFX::lineV	(	float	fX,
		float	fY1,
		float	fY2,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw a vertical line.

Parameters

fX	X coordinate of the points of the line.
fY1	Y coordinate of the first point of the line.
fY2	Y coordinate of the second point of the line.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

lineV() [2/2]

Sint32 CRM64Pro::GFX::lineV	(	float	fX,
		float	fY1,
		float	fY2,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw a vertical line.

Parameters

fX	X coordinate of the points of the line.
fY1	Y coordinate of the first point of the line.
fY2	Y coordinate of the second point of the line.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

line() [1/2]

Sint32 CRM64Pro::GFX::line	(	float	fX1,
		float	fY1,
		float	fX2,
		float	fY2,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw a line.

Parameters

fX1	X coordinate of the first point of the line.
fY1	Y coordinate of the first point of the line.
fX2	X coordinate of the second point of the line.
fY2	Y coordinate of the second point of the line.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

line() [2/2]

Sint32 CRM64Pro::GFX::line	(	float	fX1,
		float	fY1,
		float	fX2,
		float	fY2,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw a line.

Parameters

fX1	X coordinate of the first point of the line.
fY1	Y coordinate of the first point of the line.
fX2	X coordinate of the second point of the line.
fY2	Y coordinate of the second point of the line.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

rect() [1/2]

Sint32 CRM64Pro::GFX::rect	(	float	fX1,
		float	fY1,
		float	fX2,
		float	fY2,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw an outlined rectangle.

Parameters

fX1	X coordinate of the first point of the rectangle.
fY1	Y coordinate of the first point of the rectangle.
fX2	X coordinate of the second point of the rectangle.
fY2	Y coordinate of the second point of the rectangle.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

rect() [2/2]

Sint32 CRM64Pro::GFX::rect	(	float	fX1,
		float	fY1,
		float	fX2,
		float	fY2,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw an outlined rectangle.

Parameters

fX1	X coordinate of the first point of the rectangle.
fY1	Y coordinate of the first point of the rectangle.
fX2	X coordinate of the second point of the rectangle.
fY2	Y coordinate of the second point of the rectangle.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

rectFilled() [1/2]

Sint32 CRM64Pro::GFX::rectFilled	(	float	fX1,
		float	fY1,
		float	fX2,
		float	fY2,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw a filled rectangle.

Parameters

fX1	X coordinate of the first point of the rectangle.
fY1	Y coordinate of the first point of the rectangle.
fX2	X coordinate of the second point of the rectangle.
fY2	Y coordinate of the second point of the rectangle.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

rectFilled() [2/2]

Sint32 CRM64Pro::GFX::rectFilled	(	float	fX1,
		float	fY1,
		float	fX2,
		float	fY2,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw a filled rectangle.

Parameters

fX1	X coordinate of the first point of the rectangle.
fY1	Y coordinate of the first point of the rectangle.
fX2	X coordinate of the second point of the rectangle.
fY2	Y coordinate of the second point of the rectangle.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

rectRound() [1/2]

Sint32 CRM64Pro::GFX::rectRound	(	float	fX1,
		float	fY1,
		float	fX2,
		float	fY2,
		float	fRad,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw a round outlined rectangle.

Parameters

fX1	X coordinate of the first point of the rectangle.
fY1	Y coordinate of the first point of the rectangle.
fX2	X coordinate of the second point of the rectangle.
fY2	Y coordinate of the second point of the rectangle.
fRad	Radius in pixels of the corner arc.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

rectRound() [2/2]

Sint32 CRM64Pro::GFX::rectRound	(	float	fX1,
		float	fY1,
		float	fX2,
		float	fY2,
		float	fRad,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw a round outlined rectangle.

Parameters

fX1	X coordinate of the first point of the rectangle.
fY1	Y coordinate of the first point of the rectangle.
fX2	X coordinate of the second point of the rectangle.
fY2	Y coordinate of the second point of the rectangle.
fRad	Radius in pixels of the corner arc.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

rectFilledRound() [1/2]

Sint32 CRM64Pro::GFX::rectFilledRound	(	float	fX1,
		float	fY1,
		float	fX2,
		float	fY2,
		float	fRad,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw a round filled rectangle.

Parameters

fX1	X coordinate of the first point of the rectangle.
fY1	Y coordinate of the first point of the rectangle.
fX2	X coordinate of the second point of the rectangle.
fY2	Y coordinate of the second point of the rectangle.
fRad	Radius in pixels of the corner arc.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

rectFilledRound() [2/2]

Sint32 CRM64Pro::GFX::rectFilledRound	(	float	fX1,
		float	fY1,
		float	fX2,
		float	fY2,
		float	fRad,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw a round filled rectangle.

Parameters

fX1	X coordinate of the first point of the rectangle.
fY1	Y coordinate of the first point of the rectangle.
fX2	X coordinate of the second point of the rectangle.
fY2	Y coordinate of the second point of the rectangle.
fRad	Radius in pixels of the corner arc.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

arc() [1/2]

Sint32 CRM64Pro::GFX::arc	(	float	fX,
		float	fY,
		float	fRad,
		float	fStart,
		float	fEnd,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw an arc.

Parameters

fX	X coordinate of the center of the arc.
fY	Y coordinate of the center of the arc.
fRad	Radius in pixels of the arc.
fStart	Starting radius in degrees of the arc. 0 degrees is down, increasing counterclockwise.
fEnd	Ending radius in degrees of the arc. 0 degrees is down, increasing counterclockwise.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

arc() [2/2]

Sint32 CRM64Pro::GFX::arc	(	float	fX,
		float	fY,
		float	fRad,
		float	fStart,
		float	fEnd,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw an arc.

Parameters

fX	X coordinate of the center of the arc.
fY	Y coordinate of the center of the arc.
fRad	Radius in pixels of the arc.
fStart	Starting radius in degrees of the arc. 0 degrees is down, increasing counterclockwise.
fEnd	Ending radius in degrees of the arc. 0 degrees is down, increasing counterclockwise.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

circle() [1/2]

Sint32 CRM64Pro::GFX::circle	(	float	fX,
		float	fY,
		float	fRad,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw an outlined circle.

Parameters

fX	X coordinate of the center of the circle.
fY	Y coordinate of the center of the circle.
fRad	Radius in pixels of the circle.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

circle() [2/2]

Sint32 CRM64Pro::GFX::circle	(	float	fX,
		float	fY,
		float	fRad,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw an outlined circle.

Parameters

fX	X coordinate of the center of the circle.
fY	Y coordinate of the center of the circle.
fRad	Radius in pixels of the circle.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

circleFilled() [1/2]

Sint32 CRM64Pro::GFX::circleFilled	(	float	fX,
		float	fY,
		float	fRad,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw a filled circle.

Parameters

fX	X coordinate of the center of the circle.
fY	Y coordinate of the center of the circle.
fRad	Radius in pixels of the circle.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

circleFilled() [2/2]

Sint32 CRM64Pro::GFX::circleFilled	(	float	fX,
		float	fY,
		float	fRad,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw a filled circle.

Parameters

fX	X coordinate of the center of the circle.
fY	Y coordinate of the center of the circle.
fRad	Radius in pixels of the circle.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

ellipse() [1/2]

Sint32 CRM64Pro::GFX::ellipse	(	float	fX,
		float	fY,
		float	fRadX,
		float	fRadY,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw an outlined ellipse.

Parameters

fX	X coordinate of the center of the ellipse.
fY	Y coordinate of the center of the ellipse.
fRadX	horizontal radius in pixels of the ellipse.
fRadY	vertical radius in pixels of the ellipse.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

ellipse() [2/2]

Sint32 CRM64Pro::GFX::ellipse	(	float	fX,
		float	fY,
		float	fRadX,
		float	fRadY,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw an outlined ellipse.

Parameters

fX	X coordinate of the center of the ellipse.
fY	Y coordinate of the center of the ellipse.
fRadX	horizontal radius in pixels of the ellipse.
fRadY	vertical radius in pixels of the ellipse.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

ellipseFilled() [1/2]

Sint32 CRM64Pro::GFX::ellipseFilled	(	float	fX,
		float	fY,
		float	fRadX,
		float	fRadY,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw a filled ellipse.

Parameters

fX	X coordinate of the center of the ellipse.
fY	Y coordinate of the center of the ellipse.
fRadX	horizontal radius in pixels of the ellipse.
fRadY	vertical radius in pixels of the ellipse.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

ellipseFilled() [2/2]

Sint32 CRM64Pro::GFX::ellipseFilled	(	float	fX,
		float	fY,
		float	fRadX,
		float	fRadY,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw a filled ellipse.

Parameters

fX	X coordinate of the center of the ellipse.
fY	Y coordinate of the center of the ellipse.
fRadX	horizontal radius in pixels of the ellipse.
fRadY	vertical radius in pixels of the ellipse.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

polygon() [1/2]

Sint32 CRM64Pro::GFX::polygon	(	float *	fVX,
		float *	fVY,
		Sint32	iNV,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw an outlined polygon.

Parameters

fVX	Vertex array containing X coordinates of the points of the polygon.
fVY	Vertex array containing Y coordinates of the points of the polygon.
iNV	Number of points in the vertex array. From a minimum number of 3 up to 32.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

polygon() [2/2]

Sint32 CRM64Pro::GFX::polygon	(	float *	fVX,
		float *	fVY,
		Sint32	iNV,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw an outlined polygon.

Parameters

fVX	Vertex array containing X coordinates of the points of the polygon.
fVY	Vertex array containing Y coordinates of the points of the polygon.
iNV	Number of points in the vertex array. From a minimum number of 3 up to 31.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

polygonFilled() [1/2]

Sint32 CRM64Pro::GFX::polygonFilled	(	float *	fVX,
		float *	fVY,
		Sint32	iNV,
		Uint32	iColor,
		Sint32	idRes = 0 )

Draw a filled polygon.

Parameters

fVX	Vertex array containing X coordinates of the points of the polygon.
fVY	Vertex array containing Y coordinates of the points of the polygon.
iNV	Number of points in the vertex array. From a minimum number of 3 up to 32.
iColor	The color value (0xRRGGBBAA).
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

polygonFilled() [2/2]

Sint32 CRM64Pro::GFX::polygonFilled	(	float *	fVX,
		float *	fVY,
		Sint32	iNV,
		Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8	iA,
		Sint32	idRes = 0 )

Draw a filled polygon.

Parameters

fVX	Vertex array containing X coordinates of the points of the polygon.
fVY	Vertex array containing Y coordinates of the points of the polygon.
iNV	Number of points in the vertex array. From a minimum number of 3 up to 32.
iR	The red color value.
iG	The green color value.
iB	The blue color value.
iA	The alpha value.
idRes	a valid screen or image handle. By default it tries to use the default screen.

Returns

0 on success, or a negative error code on failure.

RGBtoHSV()

Sint32 CRM64Pro::GFX::RGBtoHSV	(	Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		float *	fH,
		float *	fS,
		float *	fV )

Color conversion from RGB to HSV.

Parameters

iR	Red component.
iG	Green component.
iB	Blue component.
fH	pointer to Hue component.
fS	pointer to Saturation component.
fV	pointer to Value component.

Returns

0 on success, or a negative error code on failure.

HSVtoRGB()

Sint32 CRM64Pro::GFX::HSVtoRGB	(	float	fH,
		float	fS,
		float	fV,
		Uint8 *	iR,
		Uint8 *	iG,
		Uint8 *	iB )

Color conversion from HSV to RGB.

Parameters

fH	Hue component.
fS	Saturation component.
fV	Value component.
iR	pointer to Red component.
iG	pointer to Green component.
iB	pointer to Blue component.

Returns

0 on success, or a negative error code on failure.

RGBtoYUV()

Sint32 CRM64Pro::GFX::RGBtoYUV	(	Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8 *	iY,
		Uint8 *	iU,
		Uint8 *	iV )

Color conversion from RGB to YUV.

Parameters

iR	Red component.
iG	Green component.
iB	Blue component.
iY	pointer to luma component.
iU	pointer to chrominance U component.
iV	pointer to chrominance V component.

Returns

0 on success, or a negative error code on failure.

YUVtoRGB()

Sint32 CRM64Pro::GFX::YUVtoRGB	(	Uint8	iY,
		Uint8	iU,
		Uint8	iV,
		Uint8 *	iR,
		Uint8 *	iG,
		Uint8 *	iB )

Color conversion from YUV to RGB.

Parameters

iY	luma component.
iU	chrominance U component.
iV	chrominance V component.
iR	pointer to Red component.
iG	pointer to Green component.
iB	pointer to Blue component.

Returns

0 on success, or a negative error code on failure.

RGBtoCMYK()

Sint32 CRM64Pro::GFX::RGBtoCMYK	(	Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8 *	iC,
		Uint8 *	iM,
		Uint8 *	iY,
		Uint8 *	iK )

Color conversion from RGB to CMYK.

Parameters

iR	Red component.
iG	Green component.
iB	Blue component.
iC	pointer to cyan component.
iM	pointer to magenta component.
iY	pointer to yellow component.
iK	pointer to key(black) component.

Returns

0 on success, or a negative error code on failure.

CMYKtoRGB()

Sint32 CRM64Pro::GFX::CMYKtoRGB	(	Uint8	iC,
		Uint8	iM,
		Uint8	iY,
		Uint8	iK,
		Uint8 *	iR,
		Uint8 *	iG,
		Uint8 *	iB )

Color conversion from CMYK to RGB.

Parameters

iC	cyan component.
iM	magenta component.
iY	yellow component.
iK	key(black) component.
iR	pointer to Red component.
iG	pointer to Green component.
iB	pointer to Blue component.

Returns

0 on success, or a negative error code on failure.

RGBtoYCC()

Sint32 CRM64Pro::GFX::RGBtoYCC	(	Uint8	iR,
		Uint8	iG,
		Uint8	iB,
		Uint8 *	iY,
		Uint8 *	Cb,
		Uint8 *	Cr )

Color conversion from RGB to YCC.

Parameters

iR	Red component.
iG	Green component.
iB	Blue component.
iY	pointer to luma component.
Cb	pointer to chrominance blue component.
Cr	pointer to chrominance red component.

Returns

0 on success, or a negative error code on failure.

YCCtoRGB()

Sint32 CRM64Pro::GFX::YCCtoRGB	(	Uint8	iY,
		Uint8	Cb,
		Uint8	Cr,
		Uint8 *	iR,
		Uint8 *	iG,
		Uint8 *	iB )

Color conversion from YCC to RGB.

Parameters

iY	luma component.
Cb	chrominance blue component.
Cr	chrominance red component.
iR	pointer to Red component.
iG	pointer to Green component.
iB	pointer to Blue component.

Returns

0 on success, or a negative error code on failure.
