Description

Audio Track Manager and AudioTrack objects for sound effects and music playback [v25.12.0].

Overview

The Audio Track module provides a unified audio system for loading and playing both short sound effects and long music tracks. Once the audio system is initialized using ConfigMgr::audioInit() or ConfigMgr::load(), you can load audio from external files, memory buffers, or CDC archives.
There are no longer fixed "channels". Tracks are allocated dynamically as needed, allowing for virtually unlimited polyphony (limited only by CPU/RAM).

Key features

Unified audio object: Handles both short SFX and long music streams transparently
Tag categorization: Tracks are assigned a category tag (Music, SFX, Voice, Custom) allowing group operations like "Stop all SFX" or "Fade out Music"
Hierarchical volume: Final Output Volume = Master Gain * Category Gain
Editor support: Optional raw data persistence for saving/exporting audio assets

AudioTrack actions

Playback	Play (supports multiple overlapping instances), stop, pause and resume
Transitions	Fade out and fade in on a given time
Playback control	Pitch/speed, looping, seeking (for streams)
Effects	Volume, panning, 3D distance and angular position

Loading strategies

Choose the appropriate loading strategy based on your audio content type and performance requirements:

Preload (RAM)	Best for SFX. Decodes entire file to memory for zero-latency playback
Stream (Disk)	Best for Music. Decodes chunks on-demand to save memory

Supported audio formats

Raw streams	AIFF, WAV and VOC
Compressed	FLAC, OGG and MP3
Modules (52)	669, abk, amf, arch, asylum, chip, coco, dbm, digi, dt, emod, far, flt, fnk, gal4, gal5, gdm, hmn, ice, imf, ims, it, liq, masi, masi16, mdl, med2, med3, med4, mfp, mgt, mmd1, mmd3, mod, mtm, muse, no, okt, pt3, ptm, rtm, s3m, sfx, st, stim, stm, stx, sym, ult, umx, xm, xmf

Manager type

This is a sharing manager: it has the ability of sharing an audio ID to a group of owners when they request to open an already opened object based on the name as the key.

Default behavior	Returns a shared ID. Control methods (stop/volume) affect all instances sharing this ID
Unique instance	Request via `load(..., iUnique=1)`. Creates a standalone object with independent control while efficiently sharing the underlying raw audio data in memory

Best practices

Always initialize the audio system via ConfigMgr::audioInit() or ConfigMgr::load() before using the Audio Track Manager
Leverage category tags (Music, SFX, Voice, Custom) for efficient group control operations
Consider the hierarchical volume model when setting levels: category and master gains are multipled
Request unique instances when you need independent playback control over the same audio asset
Access the manager exclusively through Main::IAudioTrackMgr()

Note: The Audio Track Manager is a singleton, automatically created once Main is instantiated. You can get a reference to this manager using Main::IAudioTrackMgr() method.
The Audio Track Manager is automatically released when Main::Terminate() is called. At this time, any resource still loaded will be released, avoiding resource leaks.

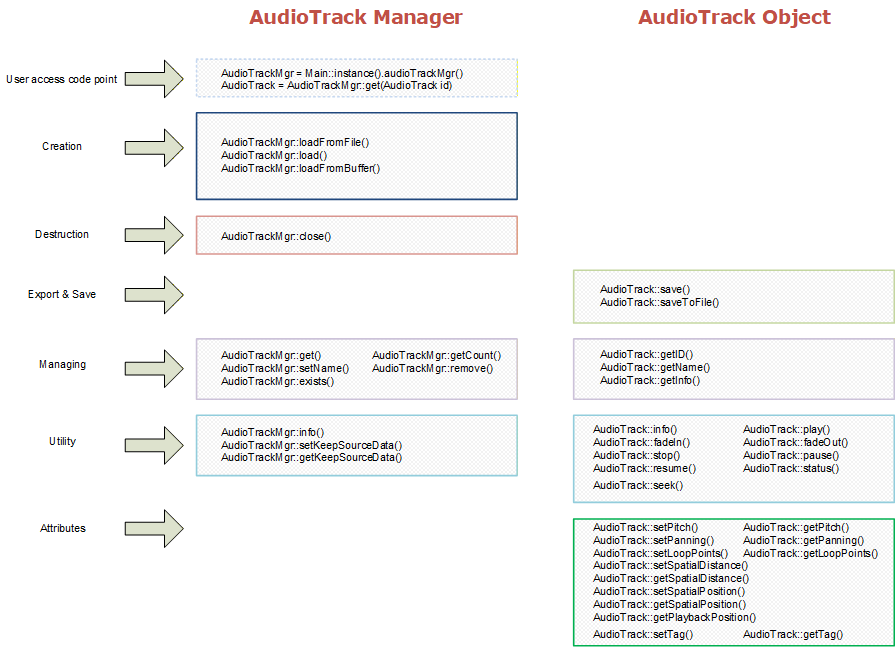

Classes
struct	CRM64Pro::AudioInfo
	Audio metadata information. More...
class	CRM64Pro::AudioTrack
	Audio Track object class. More...
class	CRM64Pro::AudioTrackMgr
	Audio Track Manager class. More...

Enumerations
enum	CRM64Pro::eAudioTrackTag { CRM64Pro::ATT_MUSIC = 0x01 , CRM64Pro::ATT_SFX = 0x02 , CRM64Pro::ATT_VOICE = 0x04 , CRM64Pro::ATT_CUSTOM = 0x08 }
	Audio track category tags for grouping and batch operations. More...
enum	CRM64Pro::eAudioType { CRM64Pro::AT_NONE = 0 , CRM64Pro::AT_WAV = 1 , CRM64Pro::AT_MOD = 2 , CRM64Pro::AT_OGG = 3 , CRM64Pro::AT_MP3 = 4 , CRM64Pro::AT_FLAC = 5 , CRM64Pro::AT_UNKNOWN = 6 }
	Audio codec/format type. More...
enum	CRM64Pro::eAudioLoadMode { CRM64Pro::ALM_AUTO = 0 , CRM64Pro::ALM_PRELOAD = 1 , CRM64Pro::ALM_STREAM = 2 }
	Audio loading strategy. More...

Functions
Sint32	CRM64Pro::AudioTrack::info (Sint32 iMode=0)
	Request AudioTrack information.
Sint32	CRM64Pro::AudioTrack::getName (string &sName)
	Get the name.
Uint32	CRM64Pro::AudioTrack::getID ()
	Get the ID.
Sint32	CRM64Pro::AudioTrack::getInfo (string sType, AudioInfo pAI) const
	Get AudioTrack detailed information.
Sint32	CRM64Pro::AudioTrack::play (Sint32 iLoop=0)
	Play the track.
Sint32	CRM64Pro::AudioTrack::fadeIn (Sint32 iTimeMS=1000, Sint32 iLoop=0)
	Play the track with a fade-in effect.
Sint32	CRM64Pro::AudioTrack::fadeOut (Sint32 iTimeMS=1000)
	Fade out all instances of this track to silence, then stop.
Sint32	CRM64Pro::AudioTrack::stop ()
	Immediately stop all instances of this track.
Sint32	CRM64Pro::AudioTrack::pause ()
	Pause all instances of this track.
Sint32	CRM64Pro::AudioTrack::resume ()
	Resume all instances of this track.
Sint32	CRM64Pro::AudioTrack::getPosition ()
	Get the current playback position.
Sint32	CRM64Pro::AudioTrack::setPosition (Sint32 iTimeMS)
	Set the playback position (Seek).
Sint32	CRM64Pro::AudioTrack::setPitch (float fPitch)
	Set Pitch (Frequency Ratio).
float	CRM64Pro::AudioTrack::getPitch () const
	Get current pitch property.
Sint32	CRM64Pro::AudioTrack::setPanning (Uint8 iLeft, Uint8 iRight)
	Set Stereo Panning.
Sint32	CRM64Pro::AudioTrack::setLoopPoints (double dStartSec, double dEndSec)
	Set Loop Points.
Sint32	CRM64Pro::AudioTrack::setDistance (Uint8 iDistance)
	Set 3D Distance Attenuation.
Sint32	CRM64Pro::AudioTrack::setPosition3D (Sint16 iAngle, Uint8 iDistance)
	Set 3D Angular Position.
Sint32	CRM64Pro::AudioTrack::setTag (eAudioTrackTag eTag)
	Set Track Tag category.
eAudioTrackTag	CRM64Pro::AudioTrack::getTag () const
	Get Track Tag category.
Sint32	CRM64Pro::AudioTrack::saveToFile (const string &sFile)
	Export the AudioTrack to an external file.
Sint32	CRM64Pro::AudioTrack::save (const string &sFileCDC)
	Save the AudioTrack into a CDC file.
Sint32	CRM64Pro::AudioTrack::save (Sint32 idCDC)
	Save the AudioTrack into a CDC file.
Sint32	CRM64Pro::AudioTrackMgr::info (Sint32 iMode=0)
	Request AudioTrack Manager information.
Sint32	CRM64Pro::AudioTrackMgr::close (Sint32 idAudio=0)
	Close and destroy an AudioTrack.
Sint32	CRM64Pro::AudioTrackMgr::getNum () const
	Get number of loaded objects.
Sint32	CRM64Pro::AudioTrackMgr::setName (Sint32 idAudio, const string &sName)
	Change the object name.
AudioTrack *	CRM64Pro::AudioTrackMgr::get (Sint32 idAudio=0)
	Get a pointer to the AudioTrack using its handler.
Sint32	CRM64Pro::AudioTrackMgr::stopAll ()
	Immediately stop all active audio tracks.
Sint32	CRM64Pro::AudioTrackMgr::fadeOutAll (Sint32 iTimeMS=1000)
	Fade out all active audio tracks to silence, then stop.
Sint32	CRM64Pro::AudioTrackMgr::pauseAll ()
	Pause all active audio tracks.
Sint32	CRM64Pro::AudioTrackMgr::resumeAll ()
	Resume all paused audio tracks.
Sint32	CRM64Pro::AudioTrackMgr::stopTag (eAudioTrackTag eTag)
	Stop all tracks of a specific audio track tag category.
Sint32	CRM64Pro::AudioTrackMgr::fadeOutTag (eAudioTrackTag eTag, Sint32 iTimeMS=1000)
	Fade out all tracks of a specific audio track tag category.
Sint32	CRM64Pro::AudioTrackMgr::pauseTag (eAudioTrackTag eTag)
	Pause all tracks of a specific audio track tag category.
Sint32	CRM64Pro::AudioTrackMgr::resumeTag (eAudioTrackTag eTag)
	Resume all tracks of a specific audio track tag category.
void	CRM64Pro::AudioTrackMgr::setKeepSourceData (Sint32 iKeep)
	Set the global policy for keeping raw source data in memory.
Sint32	CRM64Pro::AudioTrackMgr::getKeepSourceData () const
	Get the current policy for keeping raw source data.
Sint32	CRM64Pro::AudioTrackMgr::loadFromFile (const string &sFile, const string &sName="", eAudioTrackTag eTag=ATT_SFX, eAudioLoadMode eMode=ALM_AUTO, Sint32 iUnique=0)
	Load an AudioTrack from an external file.
Sint32	CRM64Pro::AudioTrackMgr::load (const string &sFileCDC, const string &sName, Sint32 iUnique=0)
	Load an AudioTrack from a CDC file (by file name).
Sint32	CRM64Pro::AudioTrackMgr::load (Sint32 idCDC, const string &sName, Sint32 iUnique=0)
	Load an AudioTrack from a CDC file (by ID).
Sint32	CRM64Pro::AudioTrackMgr::load (void *pBuffer, Sint32 iSize, const string &sName, const string &sFormat, eAudioTrackTag eTag=ATT_SFX)
	Load an AudioTrack from a raw memory buffer.
Sint32	CRM64Pro::AudioTrackMgr::remove (Sint32 idCDC, const string &sName)
	Remove an AudioTrack stored in a CDC file.
Sint32	CRM64Pro::AudioTrackMgr::exist (Sint32 idCDC, const string &sName)
	Check if an AudioTrack is stored in a CDC file.

Enumeration Type Documentation

◆ eAudioTrackTag

enum CRM64Pro::eAudioTrackTag

Audio track category tags for grouping and batch operations.

Enumerator
ATT_MUSIC	Background music track.
ATT_SFX	Sound effect track.
ATT_VOICE	Voice/dialogue track.
ATT_CUSTOM	Custom user-defined track type.

◆ eAudioType

enum CRM64Pro::eAudioType

Audio codec/format type.

Enumerator
AT_NONE	No type or uninitialized.
AT_WAV	WAV, RIFF, AIFF, or VOC audio type.
AT_MOD	Module audio type (MOD, XM, IT, etc.).
AT_OGG	OGG Vorbis audio type.
AT_MP3	MP3 audio type.
AT_FLAC	FLAC audio type.
AT_UNKNOWN	Unknown or unsupported type.

◆ eAudioLoadMode

enum CRM64Pro::eAudioLoadMode

Audio loading strategy.

Enumerator
ALM_AUTO	Automatically select based on file size/type.
ALM_PRELOAD	Preload entire audio into memory (best for SFX).
ALM_STREAM	Stream audio from file on-demand (best for music).

Function Documentation

◆ info() [1/2]

Sint32 CRM64Pro::AudioTrack::info ( Sint32 iMode = 0 )

Request AudioTrack information.

Writes information to the default log.

Parameters

iMode unused for the time being.

Returns: 0 on success, or a negative error code on failure.

◆ getName()

Sint32 CRM64Pro::AudioTrack::getName ( string & sName )

Get the name.

Parameters

sName a string containing the Audio Track object name.

Returns: 0 on success, or a negative error code on failure.

◆ getID()

Uint32 CRM64Pro::AudioTrack::getID ( )

Get the ID.

Returns: Object ID.

◆ getInfo()

Sint32 CRM64Pro::AudioTrack::getInfo	(	string *	sType,
		AudioInfo *	pAI ) const

Get AudioTrack detailed information.

Parameters

sType	a string pointer filled with the input file music extension. If nullptr, this value is not retrieved.
pAI	a pointer to an AudioInfo struct. If nullptr, this struct is not retrieved.

Returns: 0 on success, or a negative error code on failure.

◆ play()

Sint32 CRM64Pro::AudioTrack::play ( Sint32 iLoop = 0 )

Play the track.

Parameters

iLoop 0 = play once, -1 = infinite, >0 = specific number of loops.

Returns: 0 on success, or a negative error code on failure.

◆ fadeIn()

Sint32 CRM64Pro::AudioTrack::fadeIn	(	Sint32	iTimeMS = 1000,
		Sint32	iLoop = 0 )

Play the track with a fade-in effect.

Creates a new hardware track, assigns the audio data, applies current properties (Gain, Pitch, Pan), and starts playback.

Parameters

iTimeMS	Time in milliseconds for the fade-in effect. 0 for instant playback.
iLoop	Number of loops. 0 = play once, -1 = infinite, >0 = specific number of additional loops.

Returns: 0 on success, or a negative error code on failure.

◆ fadeOut()

Sint32 CRM64Pro::AudioTrack::fadeOut ( Sint32 iTimeMS = 1000 )

Fade out all instances of this track to silence, then stop.

Parameters

iTimeMS Time in milliseconds for the fade-out effect.

Returns: 0 on success, or a negative error code on failure.

◆ stop()

Sint32 CRM64Pro::AudioTrack::stop ( )

Immediately stop all instances of this track.

Returns: 0 on success, or a negative error code on failure.

◆ pause()

Sint32 CRM64Pro::AudioTrack::pause ( )

Pause all instances of this track.

Returns: 0 on success, or a negative error code on failure.

◆ resume()

Sint32 CRM64Pro::AudioTrack::resume ( )

Resume all instances of this track.

Returns: 0 on success, or a negative error code on failure.

◆ getPosition()

Sint32 CRM64Pro::AudioTrack::getPosition ( )

Get the current playback position.

Retrieves the current time position of the active track instance.

Returns: The position in milliseconds, or -1 if the track is not playing or invalid.

◆ setPosition()

Sint32 CRM64Pro::AudioTrack::setPosition ( Sint32 iTimeMS )

Set the playback position (Seek).

Jumps to a specific time in the audio track. If the track is currently playing, it seeks immediately.

Parameters

iTimeMS The position in milliseconds to seek to.

Returns: 0 on success or a negative error code on failure.

◆ setPitch()

Sint32 CRM64Pro::AudioTrack::setPitch ( float fPitch )

Set Pitch (Frequency Ratio).

Sets the pitch for future playbacks. If the track is currently playing, it updates the sound immediately.

Parameters

fPitch 1.0f = Normal, 0.5f = Half speed, 2.0f = Double speed.

Returns: 0 on success, or a negative error code on failure.

◆ getPitch()

float CRM64Pro::AudioTrack::getPitch ( ) const

Get current pitch property.

Returns: The current pitch value.

◆ setPanning()

Sint32 CRM64Pro::AudioTrack::setPanning	(	Uint8	iLeft,
		Uint8	iRight )

Set Stereo Panning.

Sets panning for future playbacks. If the track is currently playing, it updates the sound immediately.

Parameters

iLeft	0-255.
iRight	0-255.

Returns: 0 on success, or a negative error code on failure.

◆ setLoopPoints()

Sint32 CRM64Pro::AudioTrack::setLoopPoints	(	double	dStartSec,
		double	dEndSec )

Set Loop Points.

Sets loop region for future playbacks.

Parameters

dStartSec	Start of loop in seconds.
dEndSec	End of loop in seconds (or -1 for end of file).

Returns: 0 on success, or a negative error code on failure.

◆ setDistance()

Sint32 CRM64Pro::AudioTrack::setDistance ( Uint8 iDistance )

Set 3D Distance Attenuation.

Sets the distance simulation for future playbacks. If the track is currently playing, it updates the sound immediately. SDL_mixer's distance effect attenuates volume as distance increases.

Parameters

iDistance 0 (closest/loudest) to 255 (farthest/quietest).

Returns: 0 on success, or a negative error code on failure.

◆ setPosition3D()

Sint32 CRM64Pro::AudioTrack::setPosition3D	(	Sint16	iAngle,
		Uint8	iDistance )

Set 3D Angular Position.

Sets the 3D position for future playbacks. If the track is currently playing, it updates the sound immediately. Simulates sound source direction relative to listener (at center).

Parameters

iAngle	Angle in degrees (0 = front, 90 = right, 180 = back, 270 = left).
iDistance	Distance attenuation (0-255).

Returns: 0 on success, or a negative error code on failure.

◆ setTag()

Sint32 CRM64Pro::AudioTrack::setTag ( eAudioTrackTag eTag )

Set Track Tag category.

Updates the tag category (Music, SFX, Voice) and immediately re-calculates gain for active instance. This allows changing a track from "SFX" to "Music" and having it instantly adopt the Music volume level.

Parameters

eTag	The new track type.

Returns: 0 on success, or a negative error code on failure.

◆ getTag()

eAudioTrackTag CRM64Pro::AudioTrack::getTag ( ) const

Get Track Tag category.

Returns: The current eAudioTrackTag.

◆ saveToFile()

Sint32 CRM64Pro::AudioTrack::saveToFile ( const string & sFile )

Export the AudioTrack to an external file.

Parameters

sFile string containing the [directory]+filename. Extension is automatically corrected.

Returns: 0 or greater on success or a negative error code on failure.

Note: Only works if 'Keep Source Data' was enabled during load.

◆ save() [1/2]

Sint32 CRM64Pro::AudioTrack::save ( const string & sFileCDC )

Save the AudioTrack into a CDC file.

Parameters

sFileCDC Path to the CDC archive.

Returns: greater than 0 on success, or a negative error code on failure.

◆ save() [2/2]

Sint32 CRM64Pro::AudioTrack::save ( Sint32 idCDC )

Save the AudioTrack into a CDC file.

Parameters

idCDC CDC id.

Returns: greater than 0 on success, or a negative error code on failure.

Note: Only works if 'Keep Source Data' was enabled during load.

◆ info() [2/2]

Sint32 CRM64Pro::AudioTrackMgr::info ( Sint32 iMode = 0 )

Request AudioTrack Manager information.

Writes information to the default log.

Parameters

iMode -1 for displaying only Manager information. 0 (default) for displaying Manager and all Objects information.

Returns: 0 on success, or a negative error code on failure.

◆ close()

Sint32 CRM64Pro::AudioTrackMgr::close ( Sint32 idAudio = 0 )

Close and destroy an AudioTrack.

Parameters

idAudio 0 (default) for closing all tracks, or a specific AudioTrack id. If playing, it will be stopped immediately.

Returns: 0 on success, or a negative error code on failure.

◆ getNum()

Sint32 CRM64Pro::AudioTrackMgr::getNum ( ) const

Get number of loaded objects.

Returns: the number of AudioTrack objects.

◆ setName()

Sint32 CRM64Pro::AudioTrackMgr::setName	(	Sint32	idAudio,
		const string &	sName )

Change the object name.

Parameters

idAudio	AudioTrack id.
sName	The new name. Must be unique.

Returns: 0 on success, or a negative error code on failure.

◆ get()

AudioTrack * CRM64Pro::AudioTrackMgr::get ( Sint32 idAudio = 0 )

Get a pointer to the AudioTrack using its handler.

Parameters

idAudio AudioTrack id.

Returns: nullptr if not found.; A pointer to the AudioTrack object.

◆ stopAll()

Sint32 CRM64Pro::AudioTrackMgr::stopAll ( )

Immediately stop all active audio tracks.

Stops all playback on the mixer device.

Returns: 0 on success, or a negative error code on failure.

◆ fadeOutAll()

Sint32 CRM64Pro::AudioTrackMgr::fadeOutAll ( Sint32 iTimeMS = 1000 )

Fade out all active audio tracks to silence, then stop.

Parameters

iTimeMS Time in milliseconds for the fade-out effect. Default 1000ms.

Returns: 0 on success, or a negative error code on failure.

◆ pauseAll()

Sint32 CRM64Pro::AudioTrackMgr::pauseAll ( )

Pause all active audio tracks.

Returns: 0 on success, or a negative error code on failure.

◆ resumeAll()

Sint32 CRM64Pro::AudioTrackMgr::resumeAll ( )

Resume all paused audio tracks.

Returns: 0 on success, or a negative error code on failure.

◆ stopTag()

Sint32 CRM64Pro::AudioTrackMgr::stopTag ( eAudioTrackTag eTag )

Stop all tracks of a specific audio track tag category.

Iterates through all managed AudioTrack objects of the given tag category and stops them.

Parameters

eTag	The tag category to stop (Music, SFX, etc).

Returns: 0 on success, or a negative error code on failure.

◆ fadeOutTag()

Sint32 CRM64Pro::AudioTrackMgr::fadeOutTag	(	eAudioTrackTag	eTag,
		Sint32	iTimeMS = 1000 )

Fade out all tracks of a specific audio track tag category.

Iterates through all managed AudioTrack objects of the given tag category and fades them out.

Parameters

eTag	The tag category to fade out (Music, SFX, etc).
iTimeMS	Time in milliseconds for the fade-out effect. Default 1000ms.

Returns: 0 on success, or a negative error code on failure.

◆ pauseTag()

Sint32 CRM64Pro::AudioTrackMgr::pauseTag ( eAudioTrackTag eTag )

Pause all tracks of a specific audio track tag category.

Iterates through all managed AudioTrack objects of the given tag category and pauses them.

Parameters

eTag	The tag category to pause.

Returns: 0 on success, or a negative error code on failure.

◆ resumeTag()

Sint32 CRM64Pro::AudioTrackMgr::resumeTag ( eAudioTrackTag eTag )

Resume all tracks of a specific audio track tag category.

Iterates through all managed AudioTrack objects of the given tag category and resumes them.

Parameters

eTag	The tag category to resume.

Returns: 0 on success, or a negative error code on failure.

◆ setKeepSourceData()

void CRM64Pro::AudioTrackMgr::setKeepSourceData ( Sint32 iKeep )

Set the global policy for keeping raw source data in memory.

If enabled, subsequent load operations will cache the original raw bytes in RAM. This allows the use of AudioTrack::save() and AudioTrack::saveToFile().

Warning: Enabling this increases memory usage significantly (Raw Data + Decoded Audio). It is recommended to enable this only for Editors/Tools, and keep it disabled (default) for Games.

Parameters

iKeep 1 to cache raw data, 0 to discard it. Values <= 0 force disabled, values >= 1 force enabled.

◆ getKeepSourceData()

Sint32 CRM64Pro::AudioTrackMgr::getKeepSourceData ( ) const

Get the current policy for keeping raw source data.

Returns: 1 if raw data is being cached, 0 otherwise.

◆ loadFromFile()

Sint32 CRM64Pro::AudioTrackMgr::loadFromFile	(	const string &	sFile,
		const string &	sName = "",
		eAudioTrackTag	eTag = ATT_SFX,
		eAudioLoadMode	eMode = ALM_AUTO,
		Sint32	iUnique = 0 )

Load an AudioTrack from an external file.

Parameters

sFile	string containing [directory]+filename+[extension]. Directory separators '\' and '/' are supported.
sName	Object name. If empty, filename is used (without extension). Max 64 characters.
eTag	The tag category (SFX, Music, etc).
eMode	Loading strategy (Preload to RAM or Stream from disk).
iUnique	1 forces a new object creation even if an object with this name exists.

Note: If iUnique is 0 and an object with the same name already exists, the existing object's ID is returned.

Returns: AudioTrack ID on success, negative on error.

◆ load() [1/3]

Sint32 CRM64Pro::AudioTrackMgr::load	(	const string &	sFileCDC,
		const string &	sName,
		Sint32	iUnique = 0 )

Load an AudioTrack from a CDC file (by file name).

Parameters

sFileCDC	Path to the CDC archive file.
sName	Object name.
iUnique	1 forces a new object creation even if an object with this name exists.

Returns: AudioTrack ID on success, negative on error.

Note: Always forces ALM_PRELOAD (RAM) logic as streaming from a CDC archive is not supported.

◆ load() [2/3]

Sint32 CRM64Pro::AudioTrackMgr::load	(	Sint32	idCDC,
		const string &	sName,
		Sint32	iUnique = 0 )

Load an AudioTrack from a CDC file (by ID).

Parameters

idCDC	CDC archive ID.
sName	Object name stored in the archive.
iUnique	1 forces a new object creation.

Returns: AudioTrack ID on success, negative on error.

Note: Always forces ALM_PRELOAD (RAM) logic as streaming from a CDC archive is not supported.

◆ load() [3/3]

Sint32 CRM64Pro::AudioTrackMgr::load	(	void *	pBuffer,
		Sint32	iSize,
		const string &	sName,
		const string &	sFormat,
		eAudioTrackTag	eTag = ATT_SFX )

Load an AudioTrack from a raw memory buffer.

Parameters

pBuffer	Pointer to the raw audio data (WAV, OGG, etc).
iSize	Size of the buffer in bytes.
sName	Object name. It will be used as source file name together with format.
sFormat	Audio format of the buffer (AIFF, WAV, VOC, OGG, FLAC, MP3, MOD, XM, S3M, etc).
eTag	The category tag (SFX, Music, etc).

Returns: AudioTrack ID on success, negative on error.

Note: The buffer is copied internally. The user is responsible for the original buffer.

◆ remove()

Sint32 CRM64Pro::AudioTrackMgr::remove	(	Sint32	idCDC,
		const string &	sName )

Remove an AudioTrack stored in a CDC file.

Parameters

idCDC	CDC id.
sName	string with the AudioTrack name (maximum size of 64 characters).

Returns: greater than 0 on success, or a negative error code on failure.

◆ exist()

Sint32 CRM64Pro::AudioTrackMgr::exist	(	Sint32	idCDC,
		const string &	sName )

Check if an AudioTrack is stored in a CDC file.

Parameters

idCDC	CDC id.
sName	string with the AudioTrack name (maximum size of 64 characters).

Returns: 0 on success(it exists) or a negative error code on failure (it does not exist).

Note: It is normally used for checking if an audio track is present without throwing any error.

Description

Overview

Key features

AudioTrack actions

Loading strategies

Supported audio formats

Manager type

Best practices

Classes

Enumerations

Functions

Enumeration Type Documentation

◆ eAudioTrackTag

◆ eAudioType

◆ eAudioLoadMode

Function Documentation

◆ info() [1/2]

◆ getName()

◆ getID()

◆ getInfo()

◆ play()

◆ fadeIn()

◆ fadeOut()

◆ stop()

◆ pause()

◆ resume()

◆ getPosition()

◆ setPosition()

◆ setPitch()

◆ getPitch()

◆ setPanning()

◆ setLoopPoints()

◆ setDistance()

◆ setPosition3D()

◆ setTag()

◆ getTag()

◆ saveToFile()

◆ save() [1/2]

◆ save() [2/2]

◆ info() [2/2]

◆ close()

◆ getNum()

◆ setName()

◆ get()

◆ stopAll()

◆ fadeOutAll()

◆ pauseAll()

◆ resumeAll()

◆ stopTag()

◆ fadeOutTag()

◆ pauseTag()

◆ resumeTag()

◆ setKeepSourceData()

◆ getKeepSourceData()

◆ loadFromFile()

◆ load() [1/3]

◆ load() [2/3]

◆ load() [3/3]

◆ remove()

◆ exist()
